Shanghai Hongjin Ultrasonic Electronic Equipment Factory professional Manufacturer of all kinds of Geosynthic production line,For example Geocell production line,Geogrid production line etc,We also produce all kinds of ultrasonic welding machine.
Mob/whatsapp/wechat:+86 18017923790 ,E-mail:shanghai@hongjincsb.com,Skype:wangze_hong
Geosynthic production line,Geosynthic equipment:geocell production line
1, Touch-screen display and parameter setting, imported piezoelectric ceramic transducer, the output strength and stability.
2, Color display touch-screen control panel.
3,Multilingual can be choose.
4 Levels of adjustable mold design, mold fast and easy adjustment.
5, the new power amplifier circuit, power is more robust, more durable transducers,
6, frequency automatic tracking, a variety of parameter settings. High degree of automation in the domestic production of similar products in the leading position.
Mob/whatsapp/wechat:+86 18017923790 ,E-mail:shanghai@hongjincsb.com,Skype:wangze_hong
Shanghai Hongjin Automatic ultrasonic machine for GeoWeb / Geocell Technical parameters:
| Geocell welding mold-digit | HJM-11 | HJM-14 | HJM-15 | HJM-18 | HJM-22 |
| No.of welding heads | 11 unit | 14 unit | 15 unit | 18 unit | 22 unit |
| Max. Power | 28.6KW | 36.4KW | 36.6KW | 46.8KW | 57.2KW |
| Ultrasonic Vibrating Power | 16.5KW | 21KW | 23KW | 27KW | 33KW |
| SIZE OF THE EQUIPMENT (L*W*H)(M | 6.5*1.89*2.26 | 7*1.89*2.26 | 8*1.89*2.26 | 8*1.89*2.26 | 9*1.89*2.26 |
| WEIGHTNESS | 5TONS | 5.5TONGS | 5.8TONS | 6TONS | 6.5TONS |
| POWER | AC380V N 50-60HZ | ||||
| AIR PRESS | 0.6~0.9MPa | ||||
| AIR COMPESSOR DISPLACEMENT | ≥2.5~3.0/min | ||||
| VOLOUM OF AIR COMPRESSOR AIR STORAGE | 1.5~2.0M3 | 2.5~3.0M3 | |||
| WELDING DISTANCE SCOPE | 220-1000mm | ||||
| GEOCELL STRIP WIDTH | 220MM MAX (ADJUSTABLE ACCORDING TO THE SIZE OF WELDING HEAD) | ||||
| DAILY OUTPUT (REF) | 4500SQM | 4800SQM | 5000SQM | 5200SQM | 8000SQM |
As follows picture:One head for welding one position:
One head for two welding position:
We also have others standard for your choose.

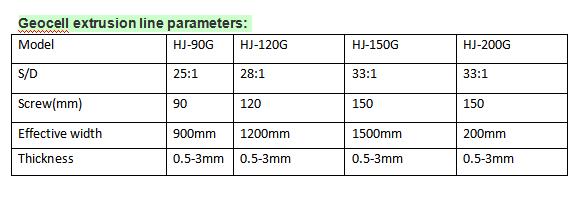

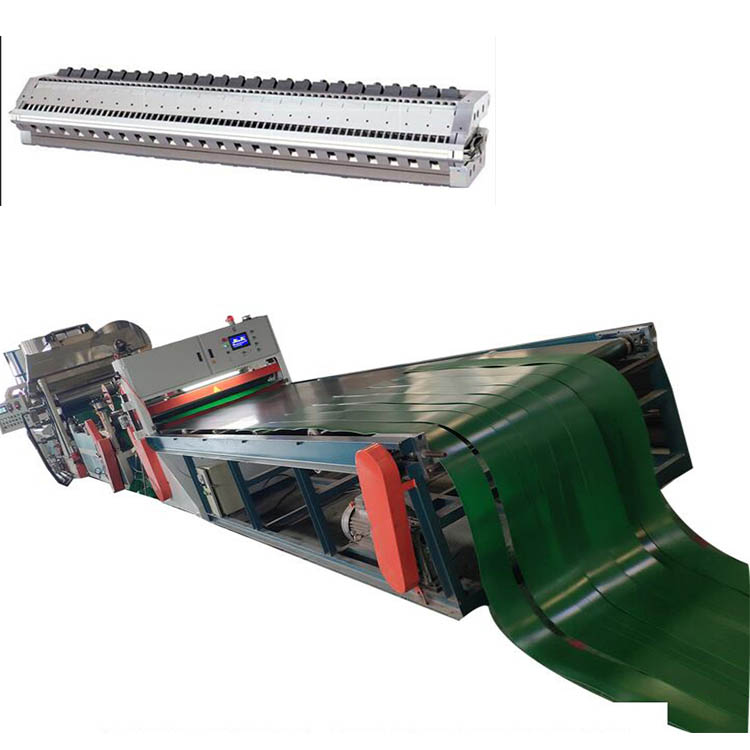

Extrusion line for geocell:
Mob/whatsapp/wechat:+86 18017923790 ,E-mail:shanghai@hongjincsb.com,Skype:wangze_hong
Punching machine for perforated geocell: We can make it online punching or offline punching
